Carburator, Choke & Throttle Cable

Vespa Sprint 150 Carb Removal

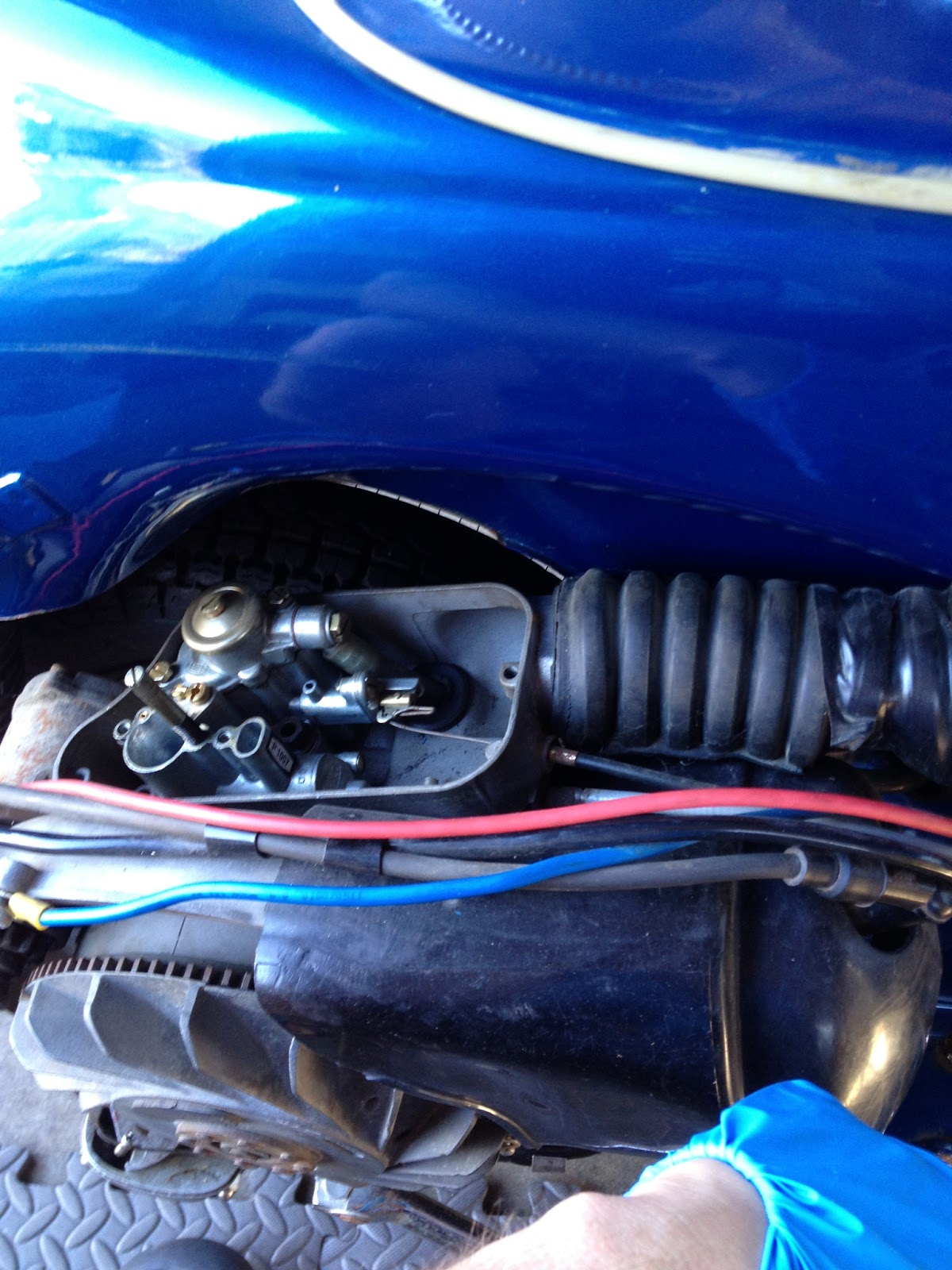

Carburator on Blue Bike

information from Carb Dellorto s120 17 p1057
Spaco LIC

So I did This Right after the seat Removal, there could be a better way but just trying to keep things in perspective- the plan is to remove the Power Unit to my workbench so I can have more room to play

Remove The two Cover bolts to the outer edge of the carb cover



Screws fit int he 5 hole and are around 45mm long

Remove the two bolts on the air filter (no washers)

 note the one on the left is an odd looking pointed screw of some sort, seems to have a bit of damage to it the right bolt is a normal one

show the appropriate sides

 again a #5 just short of 35mm long

Throttle cable & Choke cable  on the right there come through a little hole on the side of the carb and are held by little spring loaded clips

Had to bend the top one to remove a bit and unscrew the lower one didn't mark the exact position - hope this wont be an issue later (I doubt it)

Removed the Rubber just to keep it out of the way

Pulled the Throttle & choke cables out the upper one had a bent edge which I carefully straightened out to remove
